ActivitySmith GitHub Action

The official ActivitySmith GitHub Action. Send Push Notifications with optional rich media, and drive Live Activities with full lifecycle control or stream updates directly from your workflows.

Live Activities

GitHub Actions is a natural fit for full lifecycle control. A workflow has a clear start, middle, and end, and step outputs make it easy to pass live_activity_id from one step to the next. For most GitHub workflows, this is the best way to drive Live Activities.

Use stream actions when the same Live Activity should be updated across scheduled runs, separate workflows, or other stateless automation where you do not want to store live_activity_id yourself.

Live Activity UI types:

• segmented_progress: best for step-based workflows like deployments, backups, and ETL pipelines
• progress: best for continuous jobs like uploads, reindexes, and long-running migrations tracked as a percentage
• metrics: best for live operational stats like server CPU and memory, queue depth, or replica lag

Recommended for GitHub Actions: Full lifecycle control

For deployments, releases, migrations, and other bounded workflows, use the explicit lifecycle actions:

1. Run start_live_activity when the job starts.
2. Save the returned live_activity_id.
3. Run update_live_activity as the workflow moves forward.
4. Run end_live_activity when the work is finished.

Deployment workflow example

Use segmented_progress when the work has clear stages and you want the Live Activity to mirror the workflow step by step.

Start

- name: Start deployment Live Activity
  id: start_activity
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: start_live_activity
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    payload: |
      content_state:
        title: "Deploying payments-api"
        subtitle: "Build container image"
        type: "segmented_progress"
        number_of_steps: 3
        current_step: 1

Update

- name: Update deployment Live Activity
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: update_live_activity
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    live-activity-id: ${{ steps.start_activity.outputs.live_activity_id }}
    payload: |
      content_state:
        title: "Deploying payments-api"
        subtitle: "Run database migrations"
        type: "segmented_progress"
        number_of_steps: 3
        current_step: 2

End

- name: End deployment Live Activity
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: end_live_activity
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    live-activity-id: ${{ steps.start_activity.outputs.live_activity_id }}
    payload: |
      content_state:
        title: "payments-api deployed"
        subtitle: "Production healthy"
        type: "segmented_progress"
        number_of_steps: 3
        current_step: 3
        auto_dismiss_minutes: 2

Other lifecycle patterns

Progress example

Use progress when the state is naturally continuous, such as a long-running upload, reindex, or data migration.

- name: Update reindex Live Activity
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: update_live_activity
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    live-activity-id: ${{ steps.start_activity.outputs.live_activity_id }}
    payload: |
      content_state:
        title: "Reindexing product search"
        subtitle: "catalog-v2"
        type: "progress"
        percentage: 60

Metrics example

Use metrics when you want to keep a small set of live stats visible during a bounded workflow, such as canary health during a deployment or pressure metrics while a migration is running.

- name: Update canary health Live Activity
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: update_live_activity
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    live-activity-id: ${{ steps.start_activity.outputs.live_activity_id }}
    payload: |
      content_state:
        title: "Canary Health"
        subtitle: "payments-api"
        type: "metrics"
        metrics:
          - label: "CPU"
            value: 31
            unit: "%"
          - label: "MEM"
            value: 58
            unit: "%"

Live Activity Action

Just like Actionable Push Notifications, Live Activities can have a button that opens a URL in a browser or triggers a webhook. Webhooks are executed by the ActivitySmith backend.

Open URL action

- name: Start Live Activity with open URL action
  id: start_activity
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: start_live_activity
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    payload: |
      content_state:
        title: "Deploying payments-api"
        subtitle: "Running database migrations"
        type: "segmented_progress"
        number_of_steps: 5
        current_step: 3
      action:
        title: "Open Workflow"
        type: "open_url"
        url: "https://github.com/acme/payments-api/actions/runs/1234567890"

Webhook action

- name: Update Live Activity with webhook action
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: update_live_activity
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    live-activity-id: ${{ steps.start_activity.outputs.live_activity_id }}
    payload: |
      content_state:
        title: "Reindexing product search"
        subtitle: "Shard 7 of 12"
        number_of_steps: 12
        current_step: 7
      action:
        title: "Pause Reindex"
        type: "webhook"
        url: "https://ops.example.com/hooks/search/reindex/pause"
        method: "POST"
        body:
          job_id: "reindex-2026-03-19"
          requested_by: "activitysmith-github-action"

Use stream when the activity spans multiple runs

Stream actions are still useful in GitHub Actions when the same Live Activity should be updated by scheduled workflows, separate workflow runs, or jobs that should stay stateless. In that case, send the latest state with a stable stream-key and ActivitySmith will start or update the Live Activity for you.

Scheduled metrics example

- name: Stream server health
  id: stream_activity
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: stream_live_activity
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    stream-key: prod-web-1
    payload: |
      content_state:
        title: "Server Health"
        subtitle: "prod-web-1"
        type: "metrics"
        metrics:
          - label: "CPU"
            value: 9
            unit: "%"
          - label: "MEM"
            value: 45
            unit: "%"

Use end_live_activity_stream when the tracked thing is finished and you want the Live Activity dismissed. payload is optional there. If you later send another stream_live_activity request with the same stream-key, ActivitySmith starts a new Live Activity for that stream again.

Stream responses include an operation field, also exposed as steps.<id>.outputs.operation:

• started: ActivitySmith started a new Live Activity for this stream-key
• updated: ActivitySmith updated the current Live Activity
• rotated: ActivitySmith ended the previous Live Activity and started a new one
• noop: the incoming state matched the current state, so no update was sent
• paused: the stream is paused, so no Live Activity was started or updated
• ended: returned by end_live_activity_stream after the stream is ended

Push Notifications

Push Notifications support three common patterns:

• simple delivery alerts
• rich media previews
• actionable follow-up from the notification itself

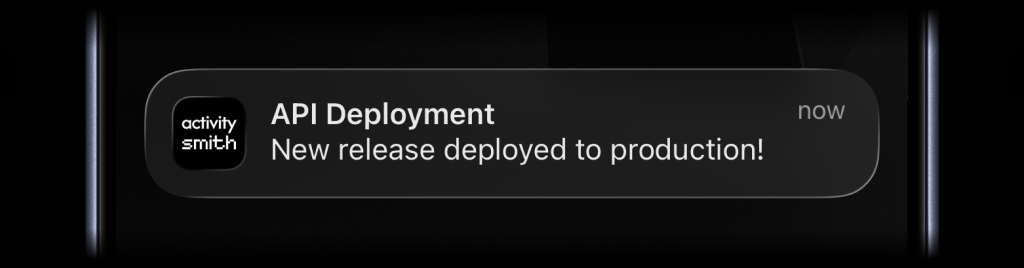

Simple Push Notifications

- name: Send push notification
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: send_push_notification
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    payload: |
      title: "API Deployment"
      message: "New release deployed to production!"

Rich Push Notifications with Media

- name: Send rich push notification
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: send_push_notification
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    payload: |
      title: "Homepage ready"
      message: "Your agent finished the redesign."
      media: "https://cdn.example.com/output/homepage-v2.png"
      redirection: "https://github.com/acme/web/pull/482"

Send images, videos, or audio with your push notifications, press and hold to preview media directly from the notification, then tap through to open the linked content.

What will work:

• direct image URL: .jpg, .png, .gif, etc.
• direct audio file URL: .mp3, .m4a, etc.
• direct video file URL: .mp4, .mov, etc.
• URL that responds with a proper media Content-Type, even if the path has no extension

media can be combined with redirection, but not with actions.

Actionable Push Notifications

Add redirection when tapping the notification should open a specific URL, and use action buttons when someone should be able to act on the notification immediately. Webhook actions are executed by ActivitySmith backend.

- name: Send actionable push notification
  uses: ActivitySmithHQ/activitysmith-github-action@v1
  with:
    action: send_push_notification
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
    payload: |
      title: "Build Failed 🚨"
      message: "CI pipeline failed on main branch"
      redirection: "https://github.com/org/repo/actions/runs/123456789"
      actions:
        - title: "Open Failing Run"
          type: "open_url"
          url: "https://github.com/org/repo/actions/runs/123456789"
        - title: "Create Incident"
          type: "webhook"
          url: "https://hooks.example.com/incidents/create"
          method: "POST"
          body:
            service: "payments-api"
            severity: "high"

Inputs

• action (required): send_push_notification, stream_live_activity, end_live_activity_stream, start_live_activity, update_live_activity, or end_live_activity
• api-key (required): ActivitySmith API key
• payload (optional): inline JSON or YAML payload. Push notifications support optional media, redirection, and up to 4 actions. Live Activities support metrics, segmented_progress, or progress content_state plus one optional action. For end_live_activity_stream, payload is optional.
• payload-file-path (optional): path to a .json, .yml, or .yaml payload file
• live-activity-id (required for update_live_activity and end_live_activity): Live Activity ID
• stream-key (required for stream_live_activity and end_live_activity_stream): stable key used to identify the tracked stream
• channels (optional): comma-separated channels for send_push_notification, stream_live_activity, and start_live_activity
• errors (optional, default false): set to true to fail the step when the API request fails
• payload-delimiter (optional): advanced override for nested payload flattening

Outputs

• ok: true when the request succeeds, otherwise false
• response: JSON stringified API response or error response
• time: Unix epoch time (seconds) when the step finished
• live_activity_id: returned when a Live Activity start or stream request returns an activity ID
• operation: returned by stream actions, such as started, updated, rotated, noop, paused, or ended

Notes

• Use either payload or payload-file-path.
• Both inline payloads and payload files can be JSON or YAML.
• Live Activity payloads go under content_state and should use snake_case keys.
• live-activity-id is required for update and end actions.
• stream-key is required for stream start/update and stream end actions.
• Push notification payloads support optional media, redirection, and up to 4 actions.
• Live Activity payloads support one optional action.
• media can be combined with redirection, but not with actions.
• channels only applies to send_push_notification, stream_live_activity, and start_live_activity. If your payload already includes target or channels, the action leaves it unchanged.
