feat(api,ui): wire Download CSV into the Runtime page

[luciferlive112116]

Closes #6392

/runtime was the one Explorer list page with no CSV export — the last unshipped installment of the "wire Download CSV into " series (#3403/#3404/#3408/#5562/#5665).

Screenshots

Download CSV now sits beside Share view, the same slot and order every sibling page's ActionBar uses. Fixed-viewport captures (never fullPage), theme forced via mg-theme + reload; before = main, after = this branch.

Viewport · Theme	Before	After

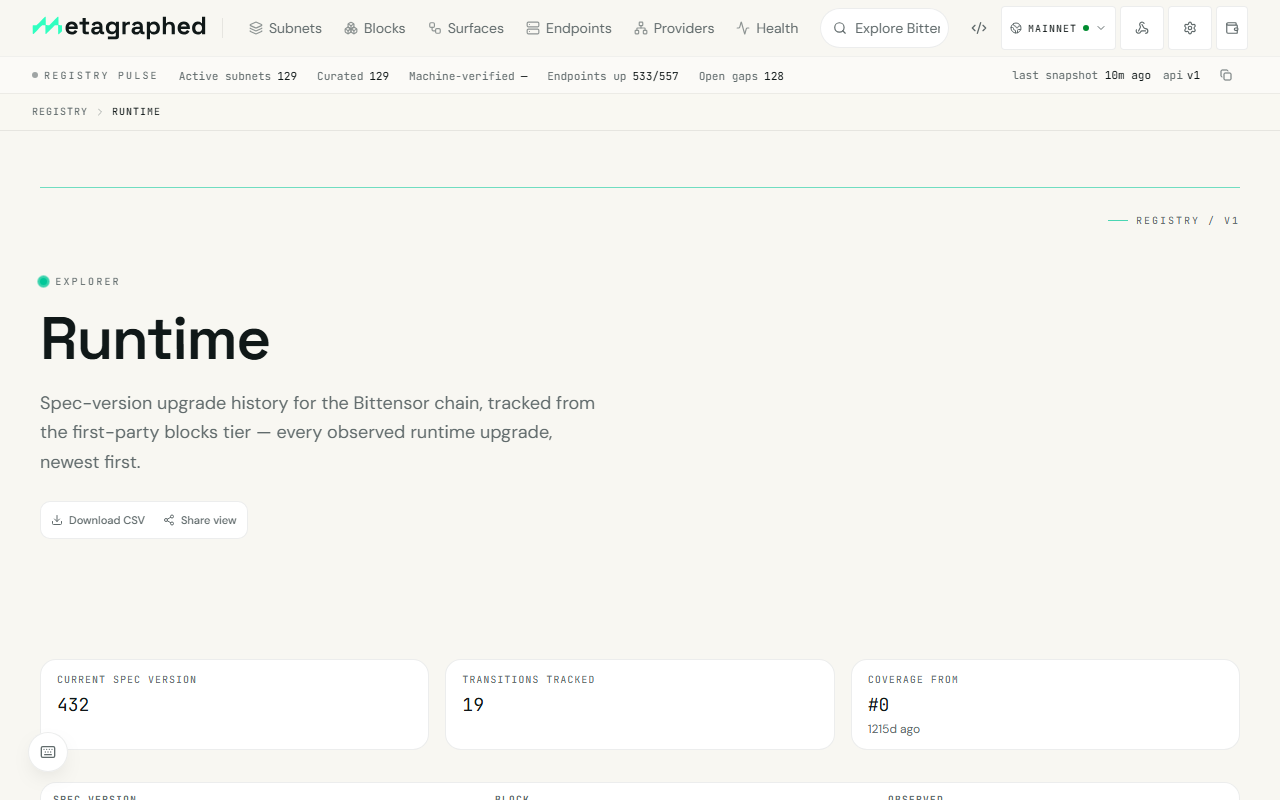

Desktop · Light	before	after

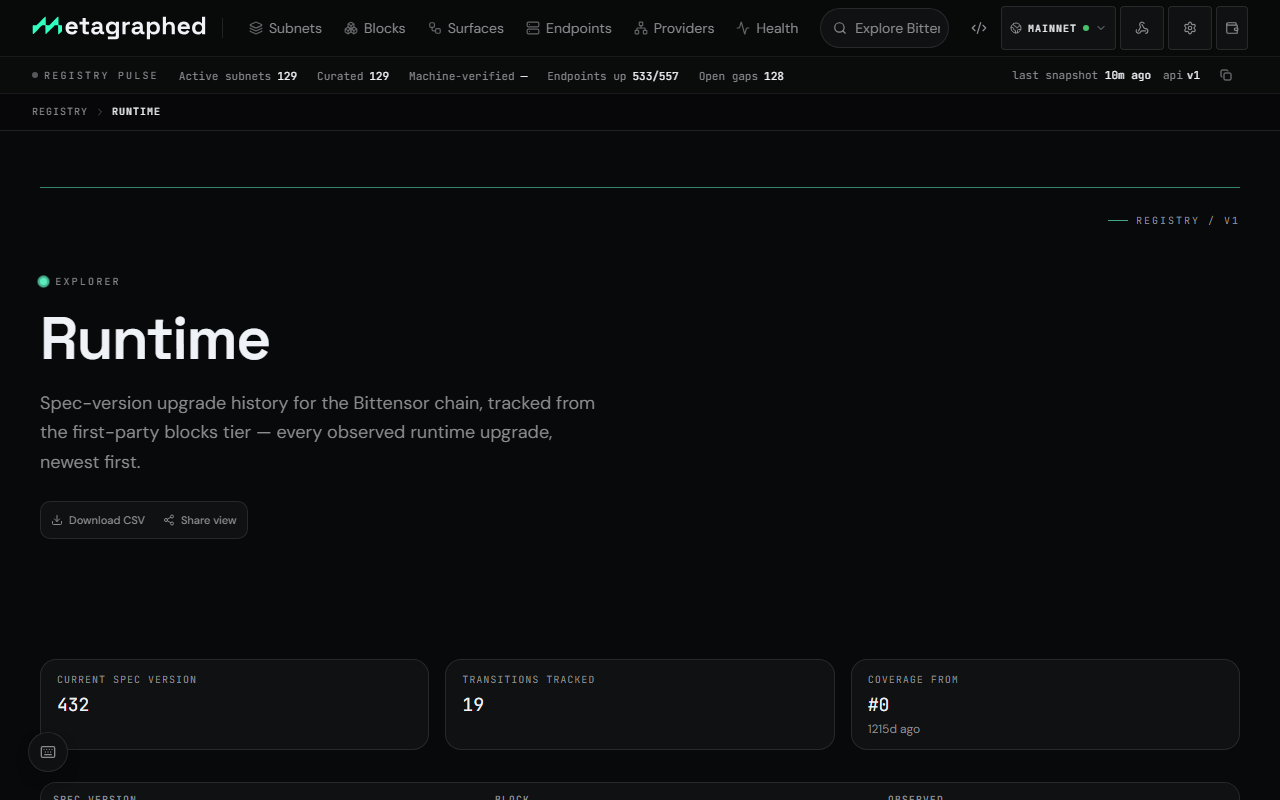

Desktop · Dark	before	after

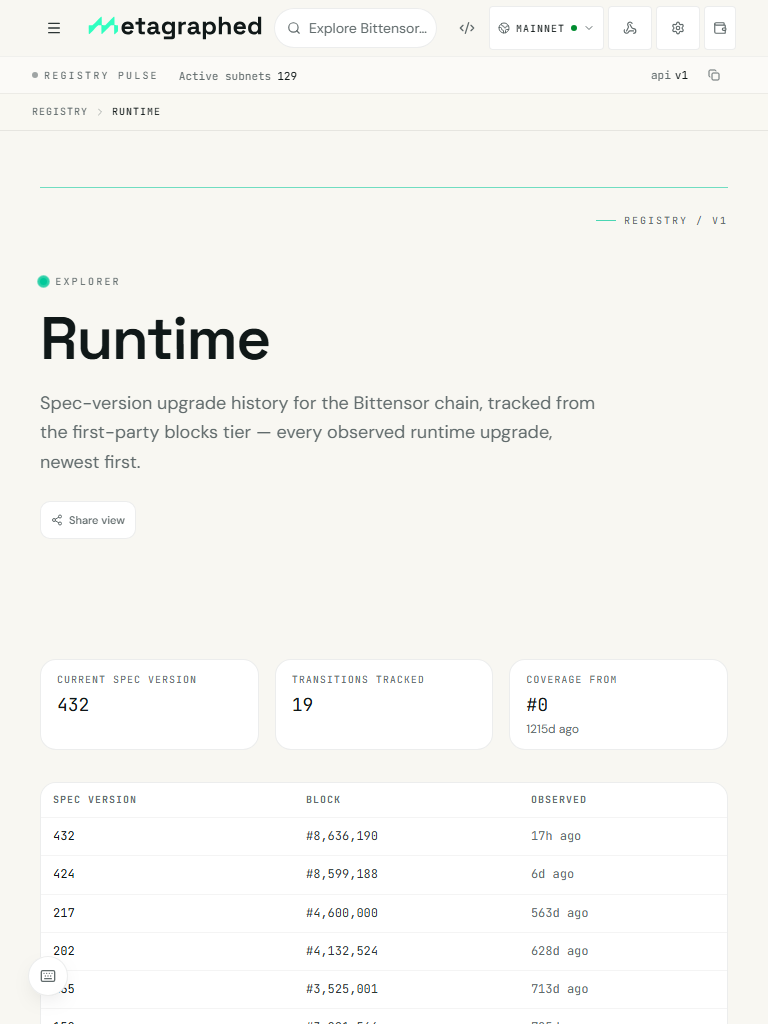

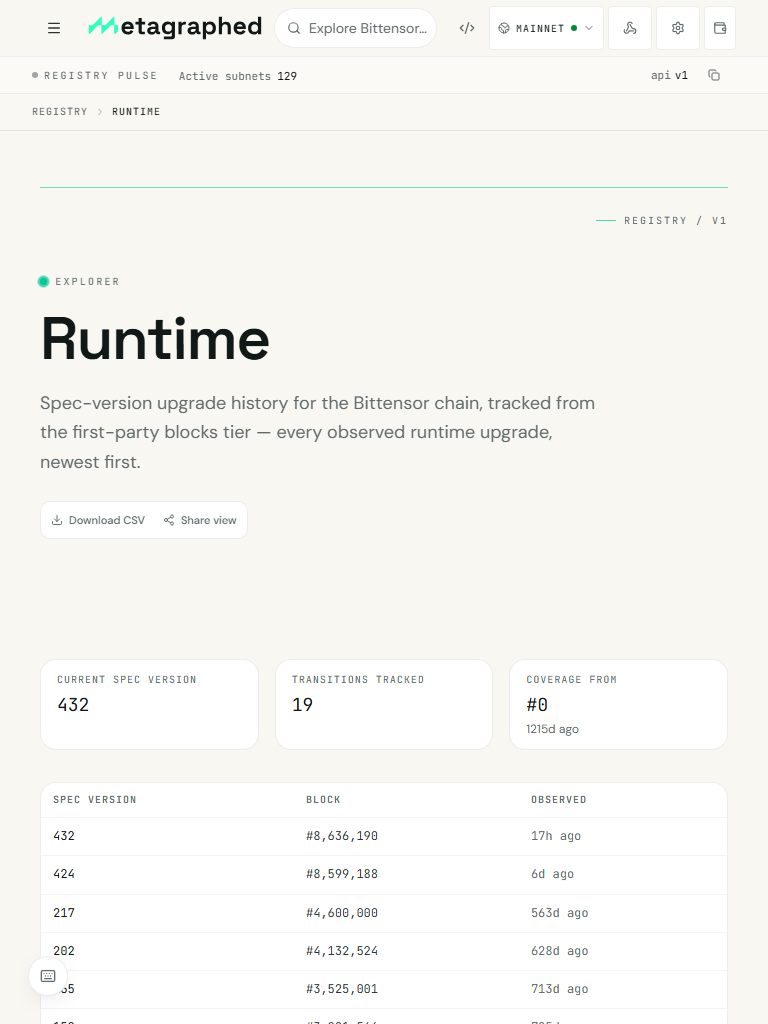

Tablet · Light	before	after

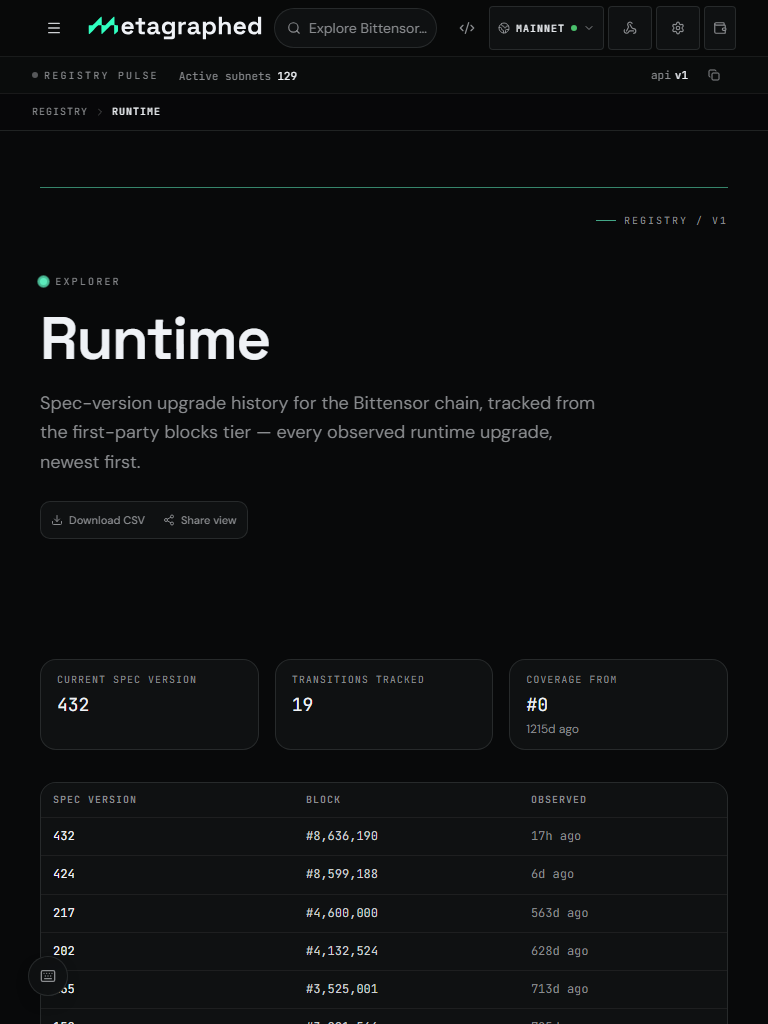

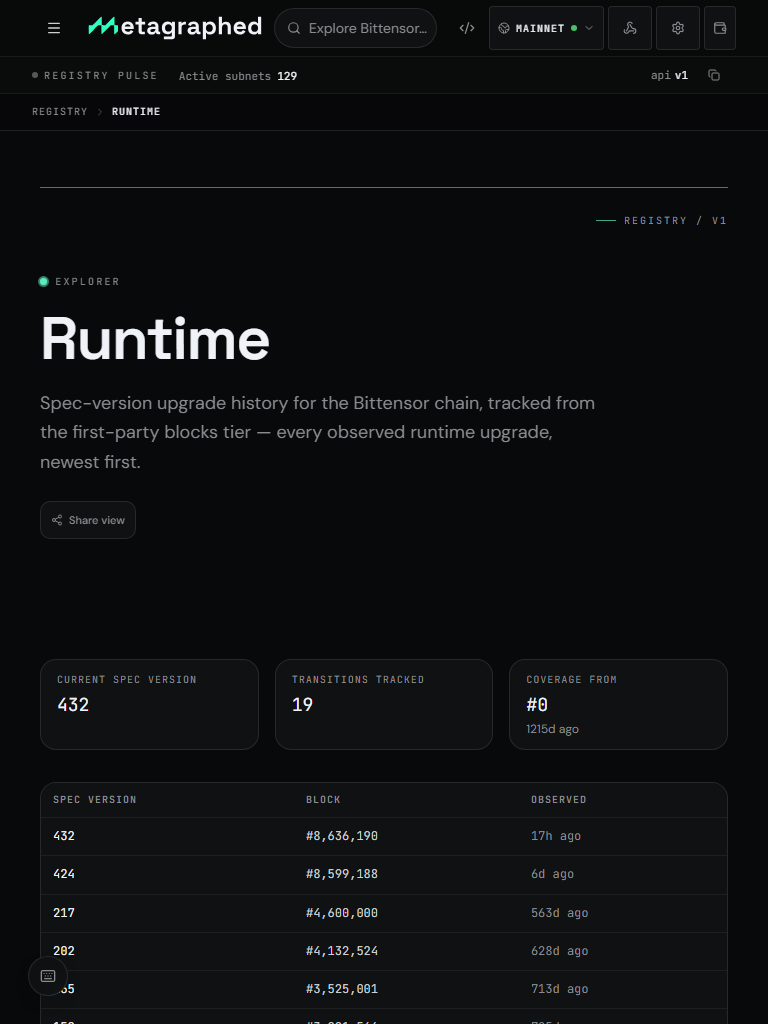

Tablet · Dark	before	after

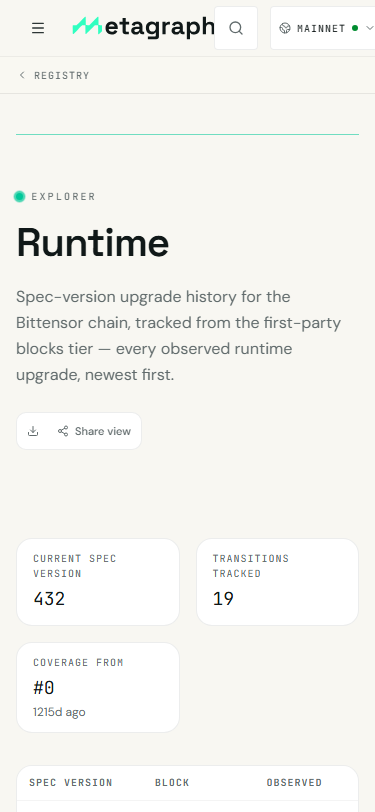

Mobile · Light	before	after

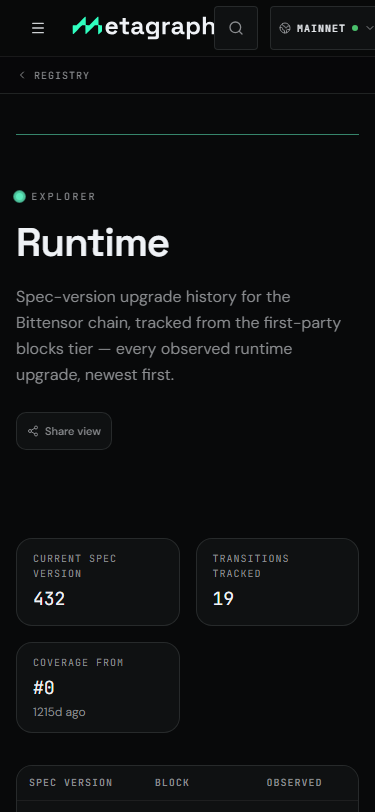

Mobile · Dark	before	after

This was not a frontend-only job

The issue asks to "confirm (and add if missing) format=csv support". It was missing — /api/v1/runtime rejected every query param (validateQueryParams(url, [])), so ?format=csv 400'd before it could reach the handler. Verified against the live route before changing anything:

before:  /api/v1/runtime?format=csv  ->  400
after:   /api/v1/runtime?format=csv  ->  200  text/csv  attachment; filename="runtime-versions.csv"
         header row: spec_version,block_number,observed_at

Backend

• handleRuntime accepts the one param via the same validateEntityQuery(url, ["format"]) idiom its neighbours in this file already use — so ?format=bogus and any unknown param are still rejected (?limit=5 → 400).
• The CSV exports data.transitions with the three columns the page's table actually renders (Spec Version | Block | Observed → spec_version, block_number, observed_at), satisfying the issue's "CSV must match the on-screen table's columns". The rollup fields (current_spec_version, coverage_from_block/at) describe the series rather than any row, so they stay JSON-only — mirroring how chain-signers/chain-fees export their leaderboard and keep totals out of the CSV.
• A cold store yields transitions: [] → a header-only CSV, never an error.
• The route contract gains csvResponse + the format parameter, so the generated OpenAPI documents both (200 now advertises application/json and text/csv).

Frontend

• DownloadCsvButton in runtime.index.tsx's PageHero.actions. /api/v1/runtime is a single whole-window aggregate with no filters to carry, so the export URL needs no params beyond format — unlike the filtered feeds, which spread their <page>QueryParams(search).

Tests

6 new cases in tests/request-handlers-entities.test.mjs. They are real regression tests — I reverted the handler and confirmed they fail without it: the CSV body/headers/filename, the JSON default (asserting the rollup stays JSON-only), ?format=json, the cold header-only CSV, ?format=bogus → 400, and that unknown params are still refused.

The Playwright capture asserts the control exists rather than just photographing it:

PASS: Download CSV control present (1 match(es))
Share view control present: true
before: Download CSV controls on /runtime = 0

tests/request-handlers-entities.test.mjs  passed
tests/contracts.test.mjs                  passed
tests/api-coverage.test.mjs               passed
validate:contract-drift / validate:types / validate:openapi  -> pass

Derived artifacts (openapi.json, types.d.ts, api-index.json, packages/contract/index.d.ts) regenerated and verified byte-identical to a fresh build after rebasing onto a main that moved 3 commits mid-work. eslint clean, prettier --check clean, pushed at behind: 0.

[superagent-security]

Superagent didn't find any vulnerabilities or security issues in this PR.

[codecov]

Codecov Report

✅ All modified and coverable lines are covered by tests.
✅ Project coverage is 97.86%. Comparing base (632d986) to head (29f7ebb).

Additional details and impacted files

@@           Coverage Diff           @@
##             main    #6500   +/-   ##
=======================================
  Coverage   97.85%   97.86%
=======================================
  Files         174      174
  Lines       22196    22199    +3
  Branches     8798     8799    +1
=======================================
+ Hits        21721    21724    +3
  Misses         81       81
  Partials      394      394

Files with missing lines	Coverage Δ
src/contracts.mjs	98.05% <ø> (ø)
workers/request-handlers/entities.mjs	98.18% <100.00%> (+<0.01%)	⬆️

🚀 New features to boost your workflow:

• 📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

[loopover-orb]

Warning

⏸️ LoopOver review result - manual review recommended

_{Review updated: 2026-07-17 17:30:18 UTC}

8 files · 1 AI reviewer · no blockers · CI green · unknown

⏸️ Suggested Action - Manual Review

• Touches a guarded path — held for manual review: This PR changes guardrail-protected path(s): apps/ui/src/routes/runtime.index.tsx (matched apps/ui/**).

Review summary
This is a straightforward, well-scoped installment of the established 'wire Download CSV into <page>' pattern: it adds a `format` query param to `/api/v1/runtime`, exports the three on-screen columns via `csvResponse`, wires `DownloadCsvButton` into the UI in the same slot/order as sibling pages, and regenerates all contract artifacts (OpenAPI, api-index, contracts.mjs, both types.d.ts copies) consistently. Tests cover CSV export, the JSON-default path, cold-store header-only CSV, and rejection of unsupported/unknown params, matching the validation change from `validateQueryParams(url, [])` to `validateEntityQuery(url, ["format"])`. The rollup fields are correctly excluded from CSV (JSON-only), consistent with the stated convention for chain-signers/chain-fees.

Nits — 4 non-blocking

• The `7,Allways` example row in the OpenAPI `text/csv` schema (public/metagraph/openapi.json) is copy-pasted boilerplate unrelated to the actual runtime columns (`spec_version,block_number,observed_at`) — worth fixing to avoid misleading API consumers.
• The magic number `7` in the same stale example also appears duplicated into packages/contract/index.d.ts and public/metagraph/types.d.ts — same fix should propagate to all three.
• Update the `text/csv` example in openapi.json/contracts.mjs to reflect the actual runtime CSV shape, e.g. `spec_version,block_number,observed_at\r\n423,8000000,2026-06-25T00:00:00.000Z`, then regenerate the derived types.d.ts/index.d.ts so the example is consistent everywhere.
• Touches a guarded path — held for manual review — A maintainer must review and merge this change.

Decision drivers

• ✅ Code review — No blockers (1 reviewer)
• ⚠️ Gate result — Not blocking (Advisory; not blocking this PR.)

Context & advisory signals — never blocks the verdict

Signal	Result	Evidence
Linked issue	✅ Linked	#6392
Related work	✅ No active overlap found	No same-issue or scoped active PR overlap found.
Change scope	✅ 20/20	Low review scope from cached public metadata (1 linked issue).
Validation posture	✅ 25/25	PR body includes validation/test evidence.
Contributor workload	✅ 10/10	Author activity: 172 registered-repo PR(s), 103 merged, 27 issue(s).
Contributor context	✅ Confirmed Gittensor contributor	luciferlive112116; Gittensor profile; 172 PR(s), 27 issue(s).

Review context

• Author: luciferlive112116
• Role context: outside_contributor
• Public audience mode: oss maintainer
• Lane context: Repository is configured for direct PR review.
• Public profile languages: Python, JavaScript, MDX, Rust, TypeScript
• Official Gittensor activity: 172 PR(s), 27 issue(s).
• PR-specific overlap: none found.

Contributor next steps

• Start here: Triage stale or unlinked PRs.

Signal definitions

• Related work = same linked issue, overlapping active PRs, or title/path similarity.
• Change scope = cached public metadata such as size labels, draft state, and review-burden hints.
• Validation posture = whether the PR provides enough public validation/test evidence for maintainer review.
• Contributor workload = public contributor activity and cleanup pressure, not a repo-wide quality failure.
• Contributor context = public GitHub/Gittensor identity context; non-Gittensor status is not a blocker.

🧪 Chat with LoopOver

Ask LoopOver a question about this PR directly in a comment — grounded only in the same cached, public-safe facts shown above, never a new claim.

• @loopover ask <question> answers contribution-quality Q&A with source citations and freshness.
• @loopover chat <question> answers in natural prose from cached decision-pack facts via local inference (maintainer/collaborator; read-only).
• A plain-language @loopover mention with a real question is routed to the closest matching read-only command automatically — no exact syntax required.

Full command reference: https://loopover.ai/docs/loopover-commands

🧪 Experimental — new and may change.

Visual preview

Route	Viewport	Before (production)	After (this PR's preview)	Diff

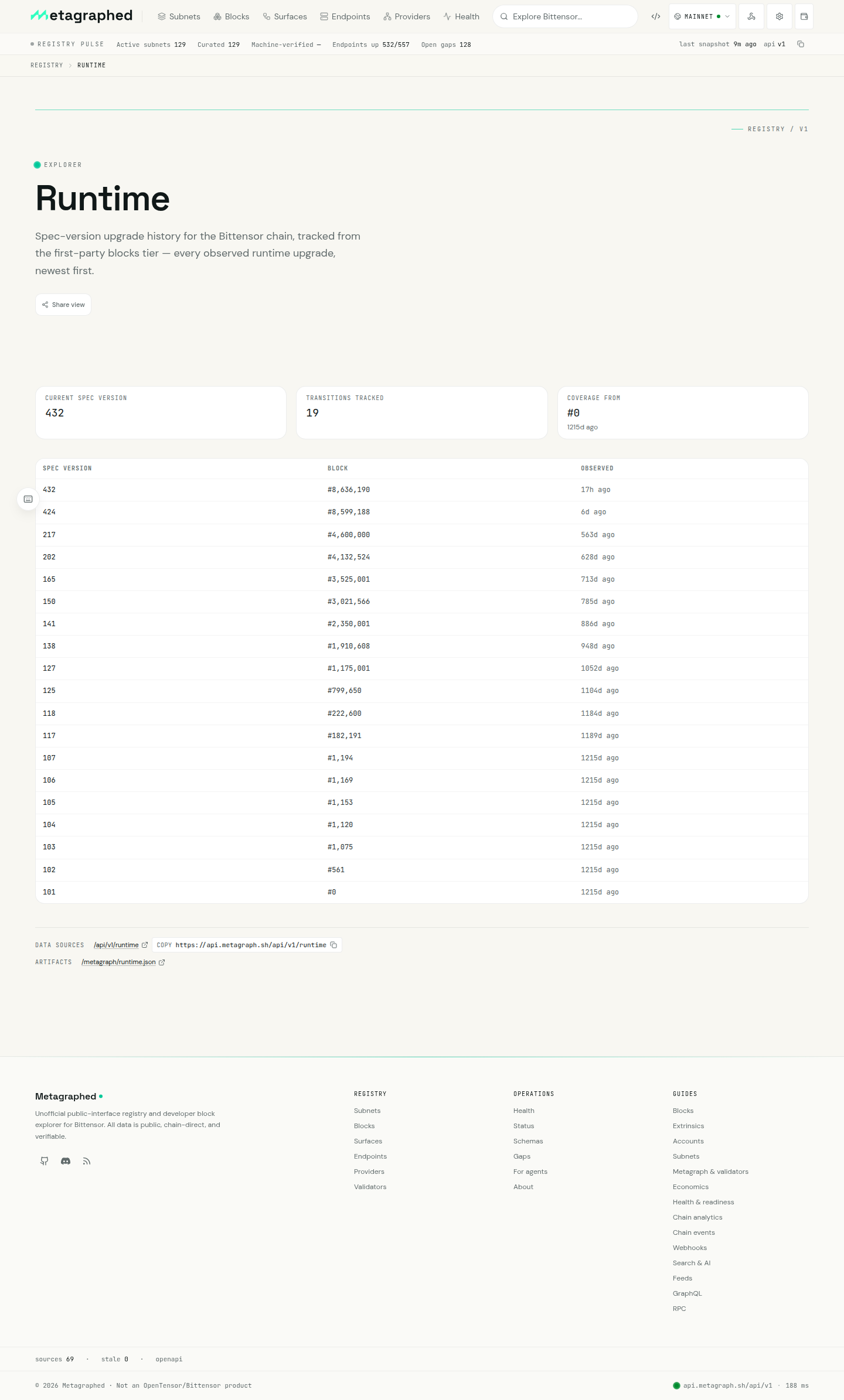

/runtime	desktop	before /runtime	after /runtime	—

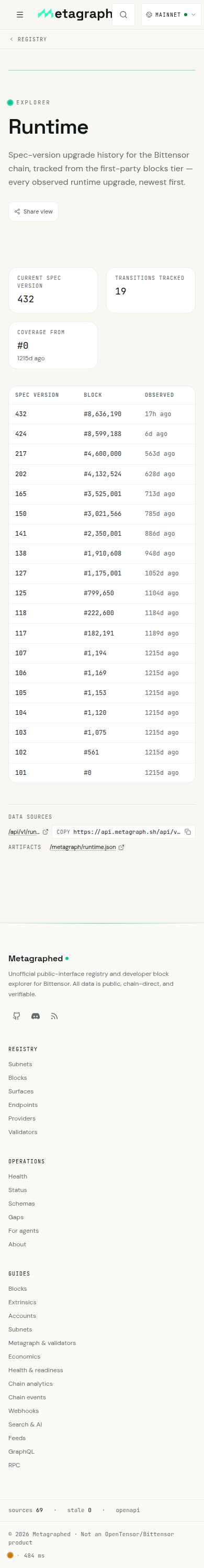

/runtime	mobile	before /runtime (mobile)	after /runtime (mobile)	—
