A C library for reading and writing REX2 (.rx2) audio loop files.
REX2 is Propellerhead's loop-slicing container. VelociLoops provides a clean, dependency-free C API that decodes and encodes the proprietary DWOP bitstream, exposes per-slice float audio, and supports a full read/write round-trip.
- REX2 / RX2 read and write — Parses and emits IFF/CIFF
.rx2containers. - Legacy ReCycle read support — Opens AIFF-backed
.rexand.rcyfiles as PCM loop containers. - Disk and memory I/O — Load from paths or caller-owned memory, and save to paths or memory.
- DWOP decode and encode — Clean-room implementation of the proprietary DWOP bitstream.
- Mono and stereo audio — Interleaved internal PCM with mono mirroring when decoding to an optional right channel.
- 16-bit and 24-bit integer paths — Decode, render, mutate, and re-encode 16-bit and 24-bit sources/authored files.
- Native sample-rate rendering — Supports source sample rates from 8 kHz to 192 kHz.
- Public slice enumeration — Exposes per-slice PPQ position, sample start, sample length, analysis points, and editing flags.
- Official-style slice sequence pass — Applies analysis sensitivity and gate-length behavior when deciding which marker-like SLCE records become renderable slices.
- Transient-stretch rendering — Extends slice output when TRSH stretch is active, using the detected loop tail and decay envelope.
- Realtime slice reads — Read slice info and audio data perform no heap allocation after opening or authoring a file.
- Muted, locked, selected, marker, and synthetic flags — Preserves public slice editing state and exposes derived marker/synthetic state.
- File metadata — Reads channel count, sample rate, bit depth, tempo, original tempo, PPQ length, time signature, loop bounds, total frames, processing gain, transient settings, and silence-selected state.
- Creator metadata — Reads and writes CREI name, copyright, URL, e-mail, and free-text fields.
- Legacy tempo and loop metadata — Recovers tempo, loop points, PPQ positions, and rendered source lengths from supported
.rex/.rcyfiles.
- Create new RX2 files — Build mono or stereo loops from caller-supplied float slices.
- SuperFlux auto-slicing — Build a save-ready loop from full-loop mono or stereo float PCM using onset detection.
- Set file and creator metadata before writing — Configure tempo, original tempo, time signature, bit depth, transient settings, and creator fields before adding audio.
- Append and remove slices — Add slices by PPQ position and remove existing slices by index.
- Round-trip by re-encoding — Decode existing slices to float audio, mutate metadata/slices, and save a fresh RX2 file.
- Plain C API —
extern "C", opaque handles, explicit error codes, and no exceptions across the ABI. - Embeddable implementation — C++17 standard library only; no runtime third-party dependencies.
- Robust parser coverage — Regression tests, sanitizer builds, fuzzing workflow, and coverage workflow are included.
Requires CMake 3.20+ and a C++17 compiler.
cmake -B build .
cmake --build buildThis produces the static library libvelociloops_static, shared library libvelociloops_shared and the velociloops demo
executable.
./build/demo/velociloops tests/data/120Stereo.rx2 out/Extracts every slice as a WAV file and performs a save/reload round-trip check.
./build/demo/velociloops tests/data/120Stereo.wav out/120Stereo_auto.rx2 120Auto-slices a WAV file with SuperFlux onset detection and writes a REX2 file.
add_subdirectory(VelociLoops)
target_link_libraries(my_target PRIVATE velociloops_static)#include "velociloops.h"
#include <stdio.h>
#include <stdlib.h>
int main(void)
{
/* Open and decode */
VLError err;
VLFile file = vl_open("loop.rx2", &err);
if (!file)
{
fprintf(stderr, "open: %s\n", vl_error_string(err));
return 1;
}
/* File metadata */
VLFileInfo info;
vl_get_info(file, &info);
printf("%d ch %d Hz %.1f BPM %d slices\n",
info.channels, info.sample_rate,
info.tempo / 1000.0, info.slice_count);
/* Decode slice 0 */
int32_t n = vl_get_slice_frame_count(file, 0);
float* L = malloc(n * sizeof(float));
float* R = malloc(n * sizeof(float));
int32_t written;
vl_decode_slice(file, 0, L, R, 0, n, &written);
/* … use L / R … */
free(L);
free(R);
vl_close(file);
return 0;
}Hosted documentation: https://velociloops.readthedocs.io/en/latest/

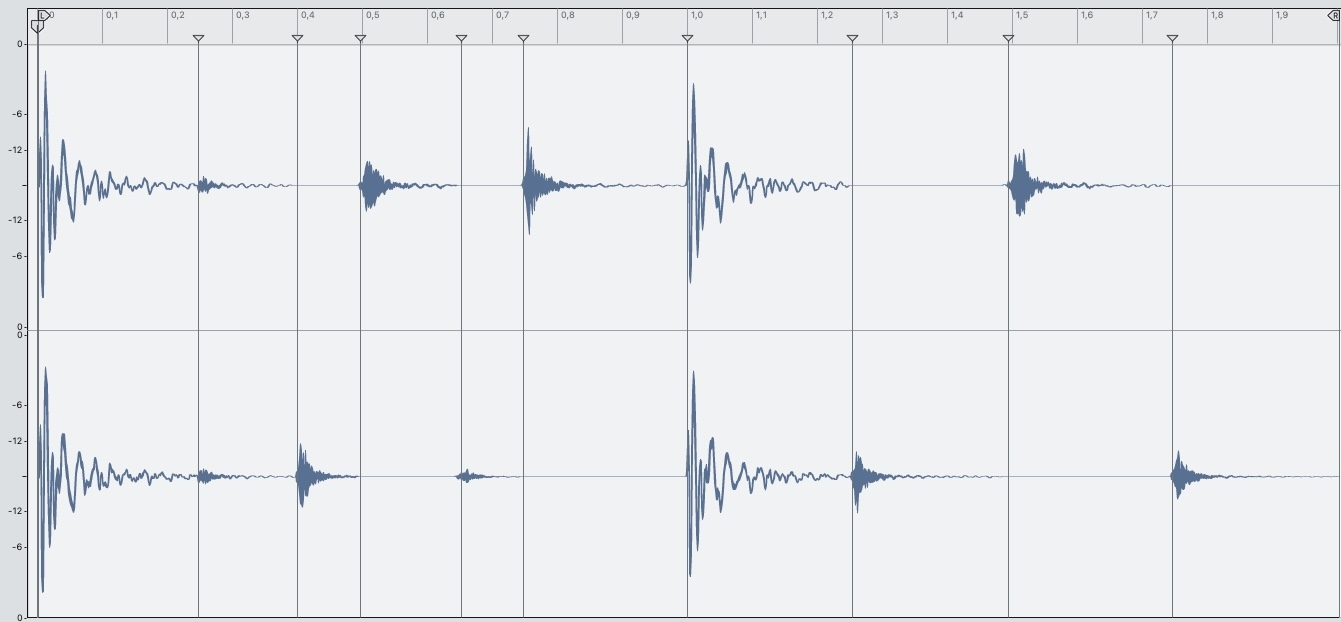

ReCycle output for 120Stereo.rx2:

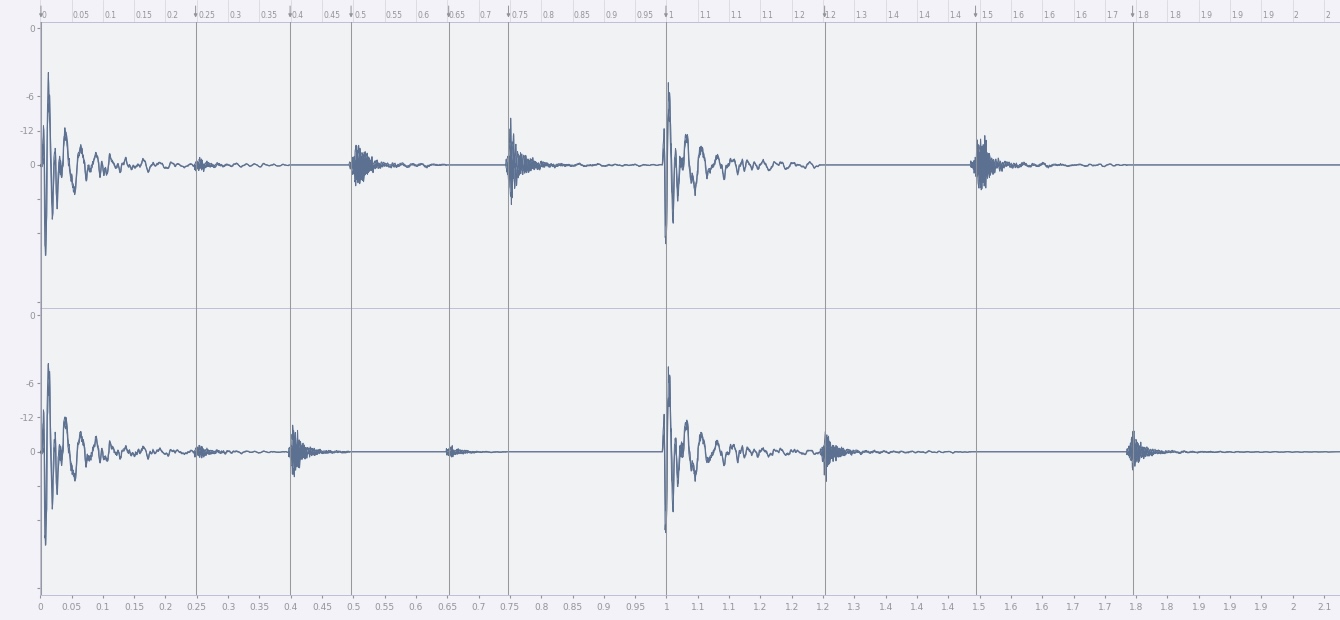

VelociLoops output for 120Stereo.rx2:
See LICENSE.
