This project aims to create an alternative NES controller pcb.

It includes:

a 1-cell lipo battery (+ charging via mini usb and UVLO)
a MCU (atmgea88 or atmega644pa)
nRF24L01 wireless module

Versions:

v1 initial prototype (2 prototypes in production)
v2 upgraded to atmega644pa
v3 nRF24L01 directly included
v4 charger directly included (planned) (currently on a daughter PCB from the "LipoManager" repository)
v5 add Gyro and ACC (planned)

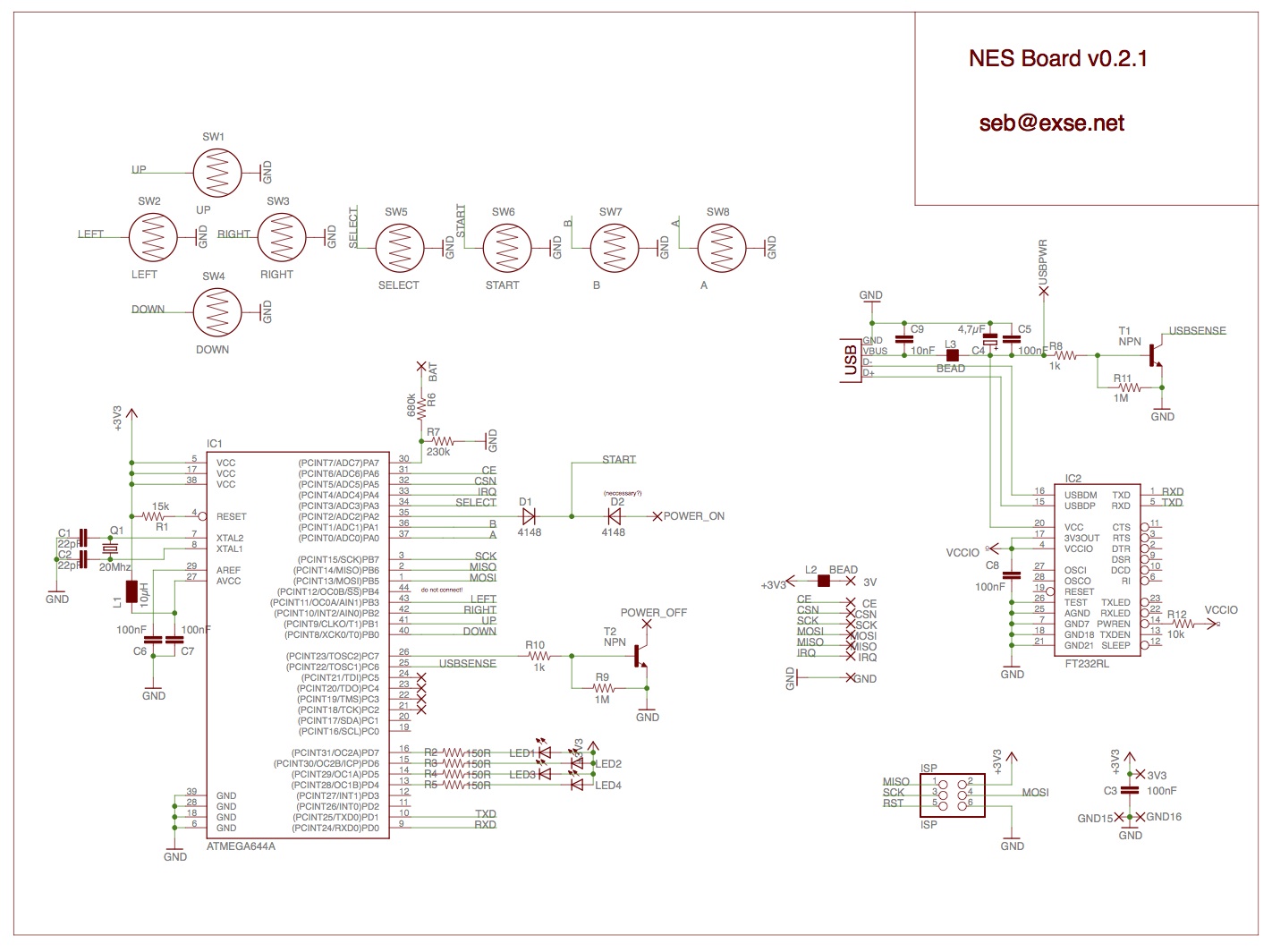

This is the v2:

About

This is a mod for the original NES Gamepad. The gamepad now is equipped with an nRF24L01 wireless chip and a lipo battery & charger.
